		切割用途
		Cutting purpose

主要用于手機鋼化膜、手機蓋板、光學玻璃、電子玻璃等玻璃產品直線切割

it is mainly used for the linear cutting of glass products such as steel film, mobile phone cover plate, optical glass and electronic glass

		機器特點
		The machine features

l大理石工作臺面，不變形，臺面平整度高，臺面平整度小于20um

lMarble work table, not deformed, the mesa flatness is high, mesa flatness is less than 20um

l大理石橫梁，進口伺服控制，定位精度高

lMarble beams, imported servo control, high positioning accuracy

l自動邊料切割，不浪費料

lAutomatic edge cutting, not waste material

l可任設原點位，原點補正功能，切割中暫停功能

lCan be set at the origin, the origin complement function, the cutting function

l真空吸附玻璃，自動吸氣/吹氣功能

lVacuum adsorption glass, automatically aspirating/blowing energy

型號 specification	HYW-9575L	HYW-1311L	HYW-1512L	HB-2015L
工作臺高度 Height of table	850	850	850	850
工件尺寸 Workpiece size	950*750	1300*1100	1500*1200	2000*1500
切割厚度 WorKing thickness	0.1-6	0.15-6	0.15-6	0.2-6
切割精度 Cutting precision	±0.025	±0.04	±0.04	±0.04
切割速度(mm/sec) Cutting speed	10-1000	10-1250	10-1250	10-1250
外型尺寸 Appearance size	14509501360	175019501360	204520501360	248022501360
氣源(Mpa) Air supply	0.5	0.5	0.5	0.5
電源 Power source	AC380V 50HZ 3KW	AC380V 50HZ 3KW	AC380V 50HZ 3.5KW	AC380V 50HZ 5KW
鼓風機（W） Blowing machine	400	400	550	1.5
轉刀裝置 Rotary knife device	電機轉刀	電機轉刀	電機轉刀	電機轉刀

Sorry 暫無 " 相關問題 " ，您可查看其它服務。

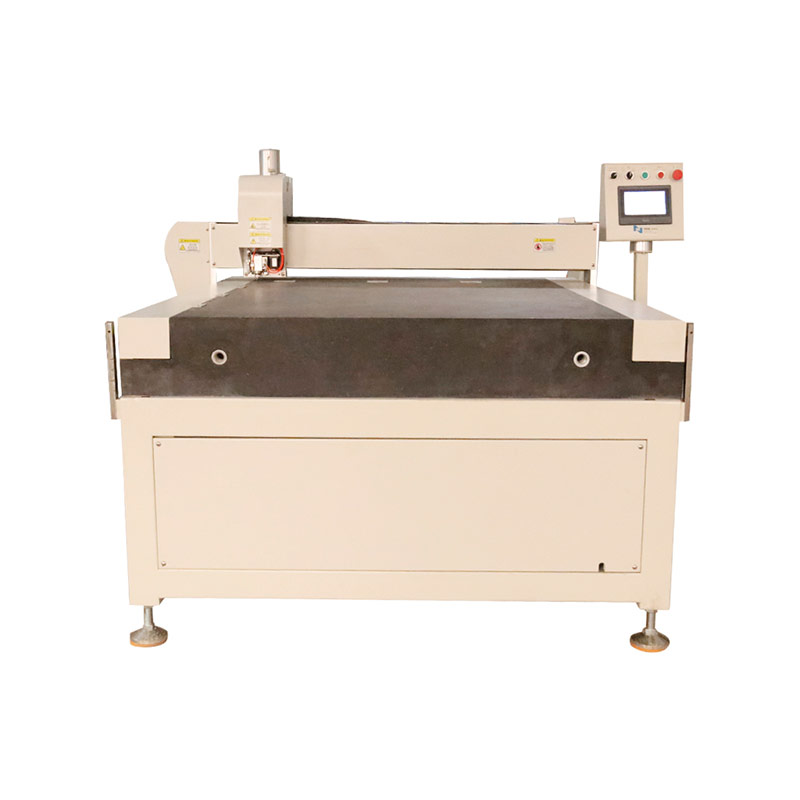

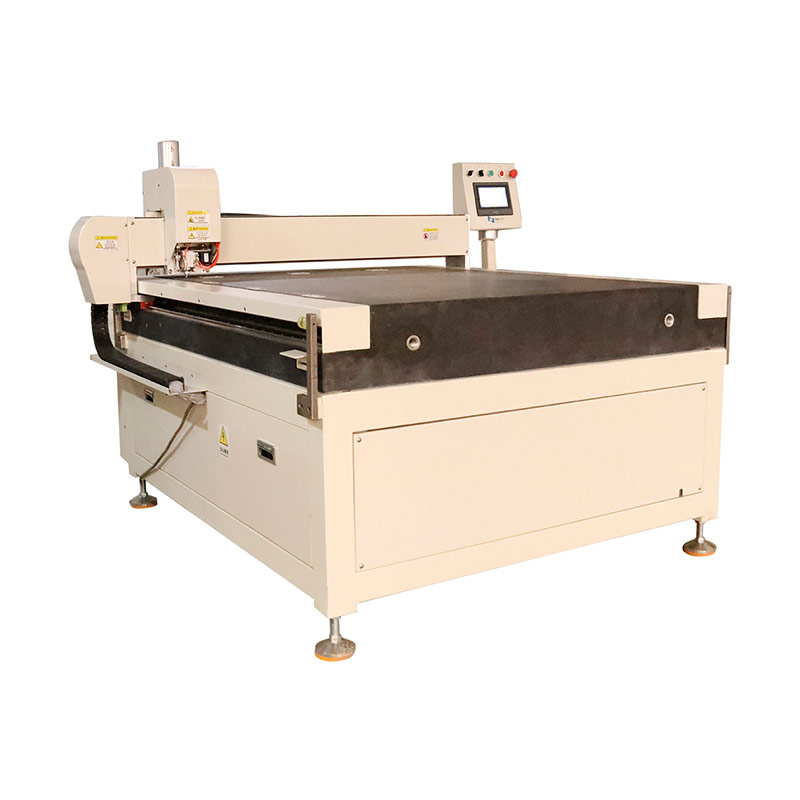

名稱超薄直線玻璃切割機
